Connecting speaker cables: Guide on how to setup your sound system

Now let’s just connect the speaker cables… cables, whether we like it or not, are a vital part of the listening experience – but that doesn’t make them any fun to work with. Trying to figure out which port is for what on the backside of a receiver is important, but challenging. When setting up a stereo system you need to be a little comfortable working with wires. However, if you take the time to learn it properly it isn’t always an impossible task.  And a bit of aid can’t go a miss when connecting speaker cables.

The basics of loudspeaker cables

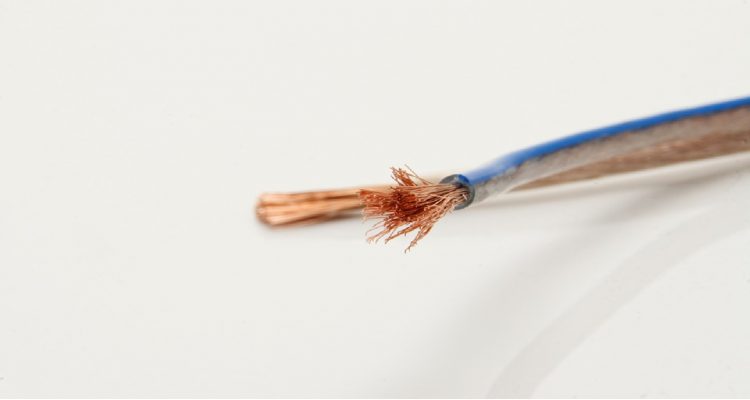

Each hi-fi system is setup with each loudspeaker having their own electronic signal. That signal runs from each loudspeaker through a cable to receiver, such as an amplifier. With a 5.1 system that is 6 cables, by a 7.1 system that’s 8. The subwoofer is often connected via Mono-cinch cable. The remaining loudspeakers, on the other hand, are equipped with two-core stereo cables; two copper wires (strands) each transmit the audio signal from the receiver to the box. The strand is made of many thin copper threads. The cable is coated with plastic, only the strand ends are free, the power should finally flow.

Step-by-step guide of connecting speaker cables

  • First of all, stand your speakers and receivers up. It will be easier to add the cables when their is clear access to all ports.
  • If possible, speaker cables should be routed from the speakers to the receiver in such a way that they do not interfere and do not become tripping hazards.
  • Screw the screw caps on the receiver output back so far that there is a gap. A stripped cable end is clamped into each of them.
  • Thread the stripped wire ends so that no wires protrude.
  • It is easy for you to see to which outputs you have to connect the speaker cables, because the sockets are labeled very precisely: For example, the speakers on the right side must be connected to the “Speaker right” output.
  • Be careful not to reverse the polarity of the speaker cables. The cable core, which is connected to the positive pole of the speaker, must also run to the positive pole of the receiver. The cables are colour-coded for orientation. If the polarity is reversed, the bass will swing inwards, not outwards. This is bad for the sound. However, this does not affect your loudspeakers.

✔ TIP: Normally, the shorter the travel distance, the louder the speaker. Sadly, short cable paths are not always likely, espically in home cinema setups. When the travel distance is over 7 meters it is suggestable to use a stereo cable with 4 mm2 quick cut.  Otherwise, you might never hear your setups’ full potential.

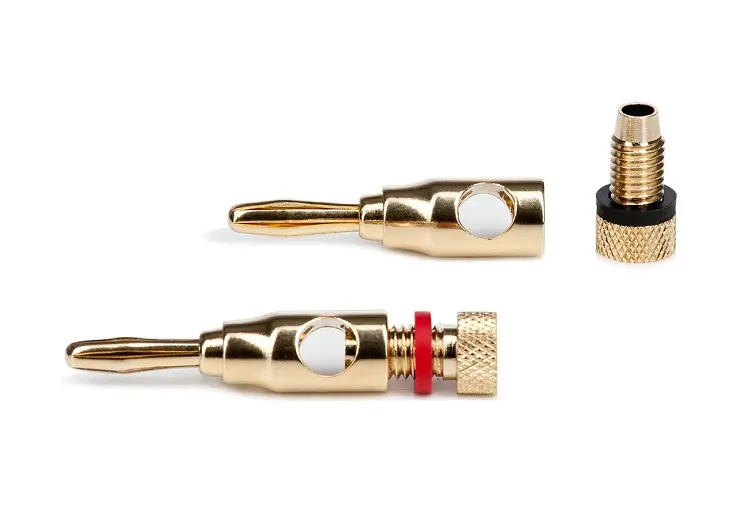

banana plugs

Banana plugs


To the banana plugs

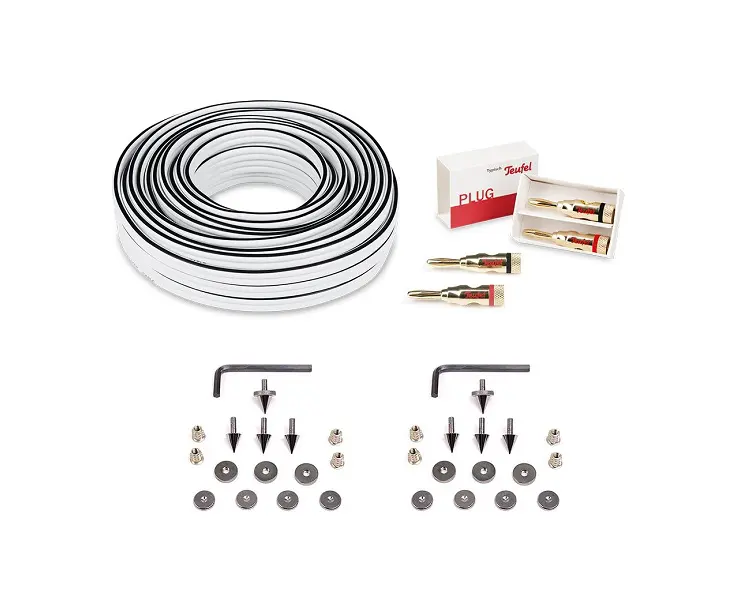

5.1 heimkino kabel set premium

5.1 Cable Set


To the 5.1 Cable Set

Using  Bananan plugs and cable lugs for connecting loudspeaker cables

Sometimes the individual wires of the copper strands are uneasy. For example, they can protrude and bend. In addition, the appearance of loosely attached strands is not everyone’s cup of tea. So-called cable lugs and banana plugs are the most common aids.

Cable lugs: These are attachments into which the strand ends are inserted before they are fixed with screw clamps or grub screws. The end of the cable lug is flattened, it is clamped in the same way as the strands in the screw cap at the box outlet of the receiver. The diameters of sleeve and cable must match.

✔ Tip: With the cable lugs, there is a high probability that the screw cap will loosen after a certain time. Check from time to time whether the cable lugs are still tight.

Banana plugs: Banana plugs are connected according to a slightly different procedure than cable lugs and strands. They are not clamped by means of a screw cap, but plugged into the receiver or amplifier outputs. To be able to connect the speaker cable, a type of plug or protective cap must be removed from the output of new receivers. How the banana plugs are fixed to the speaker cable depends on their design. The following YouTube video shows how it works:

Teufel connects

In our online shop we offer loudspeaker cables with various lengths and sizes. Our high-end plug “Referece” comes with: banana, pin and lug cables. The casing of the extras is gilded and therefore is protected against corrosion.

In unserem Onlineshop bieten wir Lautsprecherkabel mit verschiedenen Längen und Durchmessern. Unsere High-End-Stecker „Reference“ kommen mit drei Aufsätzen: Banane, Pin und Schuh. Die Oberfläche der Aufsätze ist vergoldet und damit dauerhaft gegen Korrosion geschützt.

Following products could interest you:

corestation compact

CoreStation Compact


To the CoreStation Compact

CoreStation


To the CoreStation

Conclusion: Hand work, that’s worth it

  • A loudspeaker cable in the Hi-Fi range usually consists of two copper wires (strands).
  • Subwoofers are connected separately via a Cinch cable (mono) (to “Sub out”).
  • Stripped speaker cables are attached to the receiver outputs via screw terminals. It is important that no copper wires protrude or bend.
  • Alternatively, you can connect the speaker cables using banana plugs or cable lugs.
